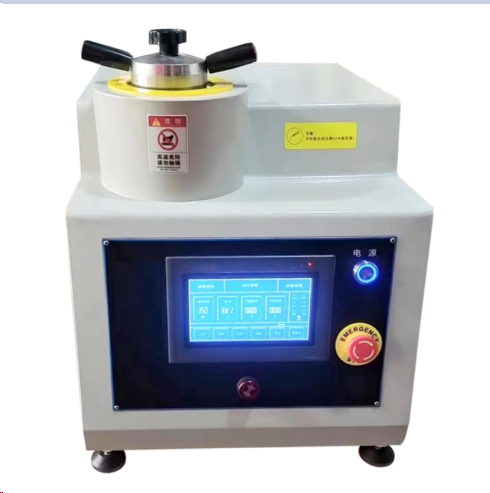

ZXQ-5 Automatic Metallographic Sample Mounting Press

Mounting press, automatic metallographic mounting press price, high quality sample moulding machine


Features and Applications:

1. Used to set up irregular specimen so that it can fix in with the request of the surface.
2. It also can protect the edge and keep out of the abrasion.
3. It is an automatic mounting press for metallographic specimen. Suitable for all thermosetting materials because of the cooling system
4. It can finish automatically with the heating temperature, the holding time, and acting force.
5. The operator can change 4 specification patterns according to the difficult specimen.
6. It can make 2 specimens at one time.



Specification of Die φ25mmφ30mmφ40mmφ50mm
Power supply 220V 50HZ
Max Power Consumption 1600W
System Pressure 0~2Mpa
Sampling Pressure 0-72Mpa
Temperature 0-300
Heat Holding Time 0-99 min&99 sec.
Dimensions 615*510*500mm
Weight 110Kg
Type of Cooling Water-cooled
