Brinell Hardness Indentation Automatic Measurement System

Indentation Automatic Measure System for Brinell Hardness Tester

The main functionalities of iVision-HB include:

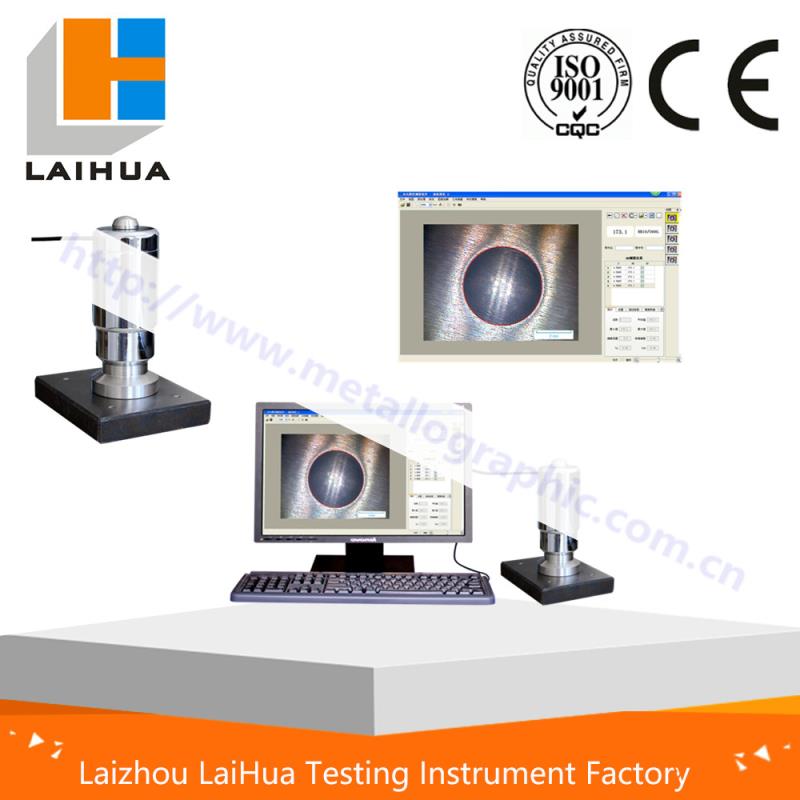

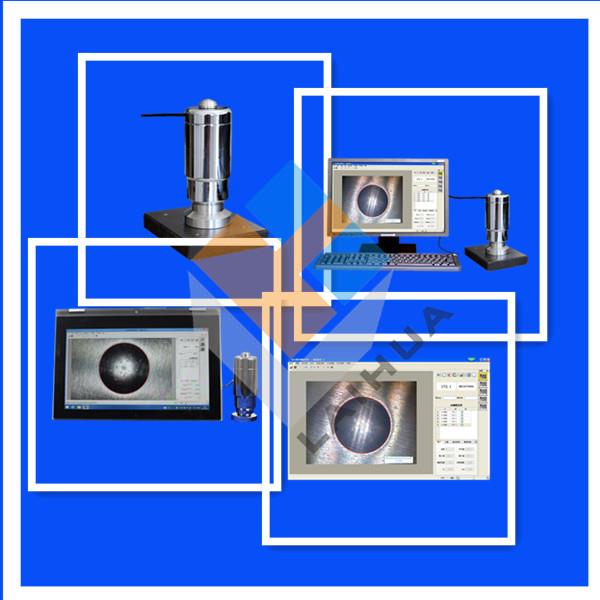

  • Portable USB camera with multiple configurable magnifications: 4 magnifications to cover the full measurement range from 0.8mm to 6mm
  • OS supported: Windows XP, Windows Vista, Windows 7 and 8 32 and 64 bits

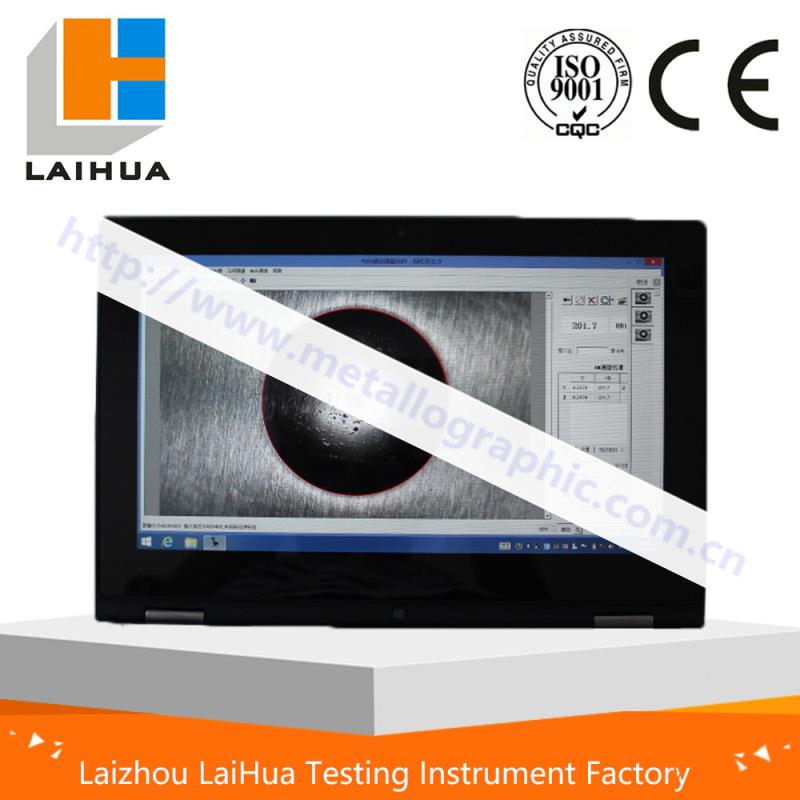

  • Automatic HB Measurement: Automatically finds the indentation circle and calculates the HB hardness value
  • Manual correction: Test result can be manually corrected with a simple mouse drag move
  • Statistics: Automatically calaulates the average hardness and its standard deviation
  • Out of bound alert: Automatically marks the hardness data outliers and the out of bound data points
  • Data archiving: Test results including measurement data and measurement images can be saved in a file
  • Reporting: Test results including measurement data, measurement images can be outputed to a Word document. User can customize the report template.
  • Other functions: Inherits all the functions of iVision-PM Geometry Measurement Software
