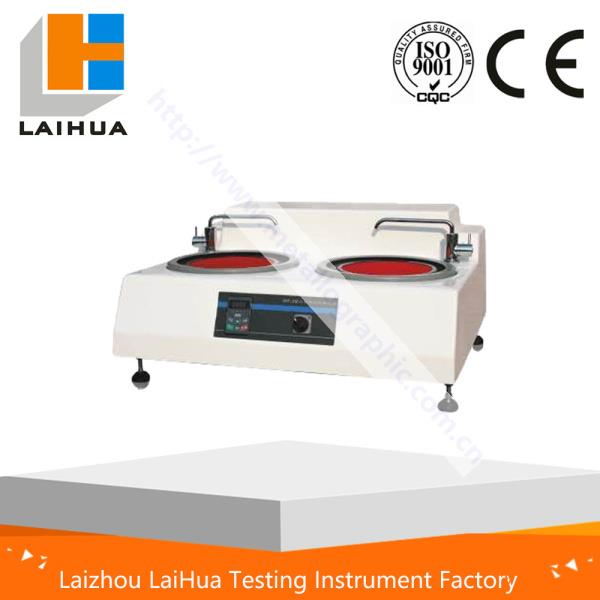

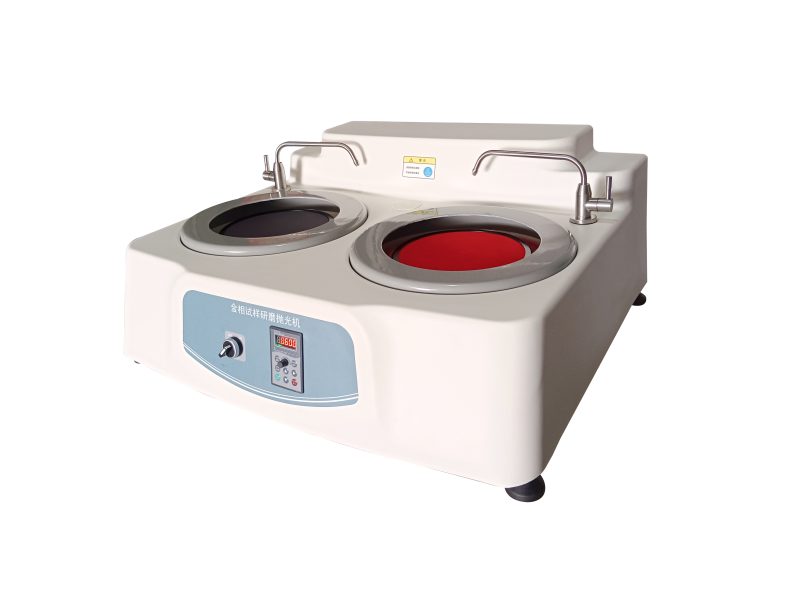

MP-2B Metallographic grinding polishing machine

Metallographic grinder and polisher


Features and Applications:

1.Double-disc desktop, can be operated by two people simultaneously;
2.regulating speed by a frequency changer, with a speed of 50-1000rpm,
3.equipped with a cooling device, preventing the damage of the metallographic structure caused by overheat
4.applicable to pre-grinding, grinding and polishing of metallographic samples
5. easy to operate, safe and reliable, is an ideal equipment for the labs of plants, research institutes and universities and colleges.



Diameter of grinding disc 230mm
Grinding Disc Rotating Speed 50-1000 rpm
Diameter of polishing disc 200mm
Polishing Disc Rotating Speed 50-1000 rpm
Working Voltage 220V/50Hz
Diameter of Abrasive Paper φ200mm
Motor YSS7124, 550W
Dimension 700×600×278mm
Weight 50KG
