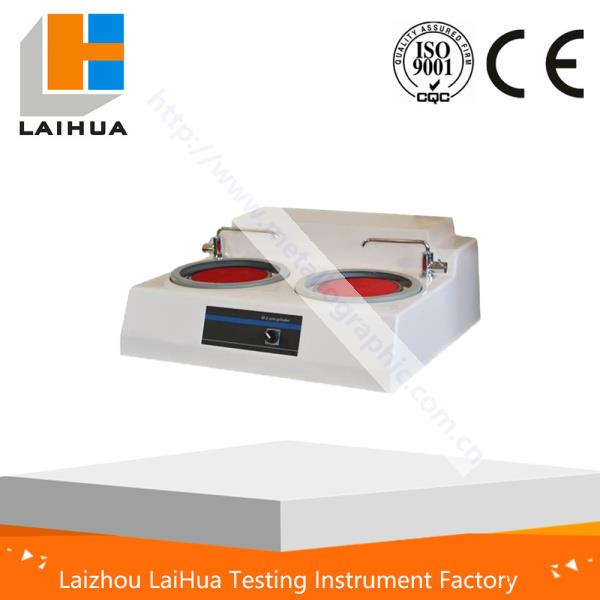

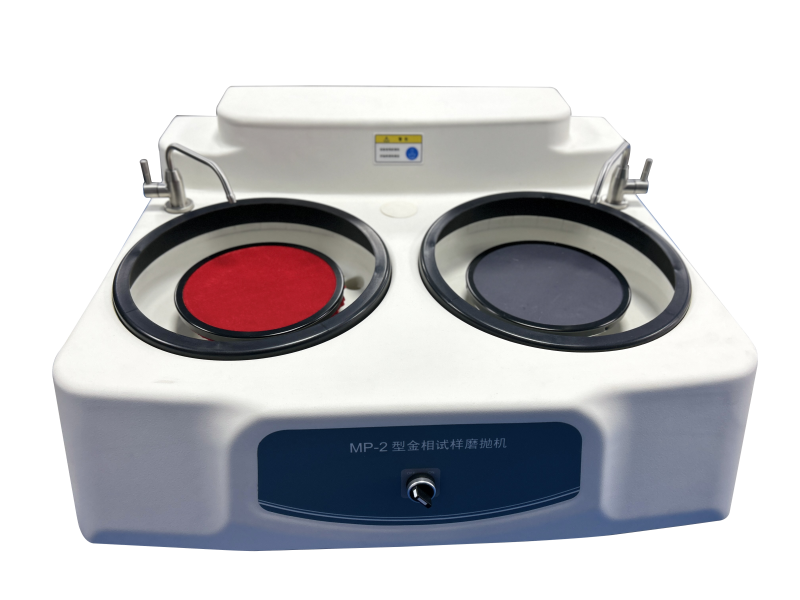

MP-2 Metallographic grinding polishing machine

Metallographic grinder and polisher

Features and Applications:

1. Suitable for metallographic specimen pre-grinding, grinding and polishing operation.
2. Equipped with cooling device to prevent the sample from overheating.
3. Left disc used for grinding and right disc used for polishing, so two people can operate it at the same time.
4. Easy to operate, safe and reliable. It is the ideal sample preparation equipment for factories, research institutes and universities laboratory.



Grinding disc diameter 230mm
Polishing disc diameter 200mm
Grinding speed 450r/min(or customize)
Polishing speed 600r/min(or customize)
Motor driver 370W,220V,50Hz
Machine size (L*W*H) 700×600×278mm
Weight 45kg
