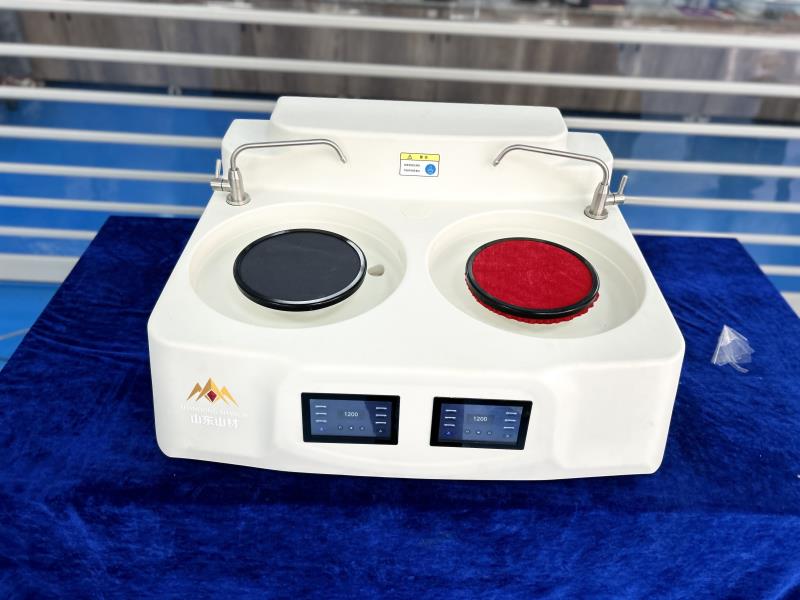

MP-2DE Metallographic grinding polishing machine

Metallographic grinder and polisher



Features and Applications:

1. Equipped with double discs and double control systems, the machine can be operated by two persons simultaneously.
2. Two working conditions through the microprocessor control system. 50-600 rpm(step-less speed changing)Or 150/300 rpm(two-level constant speed)
3. Equipped with cooling system that can cool down the specimen during pre-grinding so as to prevent overheating and damaging the metallographic structure.
4. Applicable to rough grinding, fine grinding, rough polishing and finishing polishing for specimen preparing. Ideal option for the lab of factories, science and research institutions and universities.



Specifications:

Diameter of working disc 203mm 250mm can be customized
 Rotating Speed of working disc 50-600 rpm(step-less speed changing)Or 150/300 rpm(two-level constant speed)
Working Voltage 220V/50Hz
Diameter of Abrasive Paper φ200mm (250mm can be customized)
Motor YSS6324, 250W
Dimension 700*600*278mm
Weight 55KG
