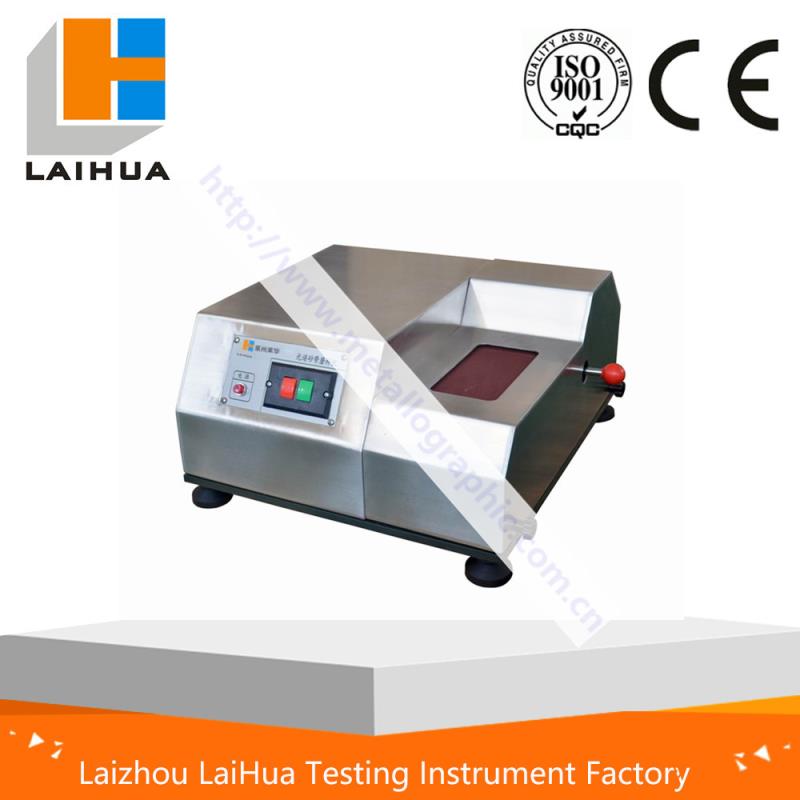

BG32 Spectrum Abrasive Belt Grinding Machine

belt grinding machine factory, High quality Belt grinder, China supplier





Feature and Application:

Grinding is the necessary working procedure before spectral measurement in the preparation of spectrum specimen. BG32 spectrum abrasive belt grinding machine is made of fully enclosed stainless steel. There is a water tank below the abrasive belt, which could take the dirt into the water so that the work will not pollute the air. It is the new product developed according to numerous market research, many service conditions and merits of different grinding machine. The operational principle: There is a big rolling drum with rubber on the main axle of the electric motor. It drivers the slave drum by abrasive belt. The abrasive belt moves straightly. The sample can be grinded to satisfy the spectral measurement demand on the abrasive belt.





Technical Parameter:

Center Distance of Rolling Drum

310mm

Width of Abrasive Belt

100mm

Length of Abrasive Belt

920mm

Opening Size

80×150mm

Rotating Speed

1400r/min (480m/min)

Electromotor

Y801-4, 0.55kw, 380V, 50Hz

Dimensions

470×480×230mm

Weight

55kg
