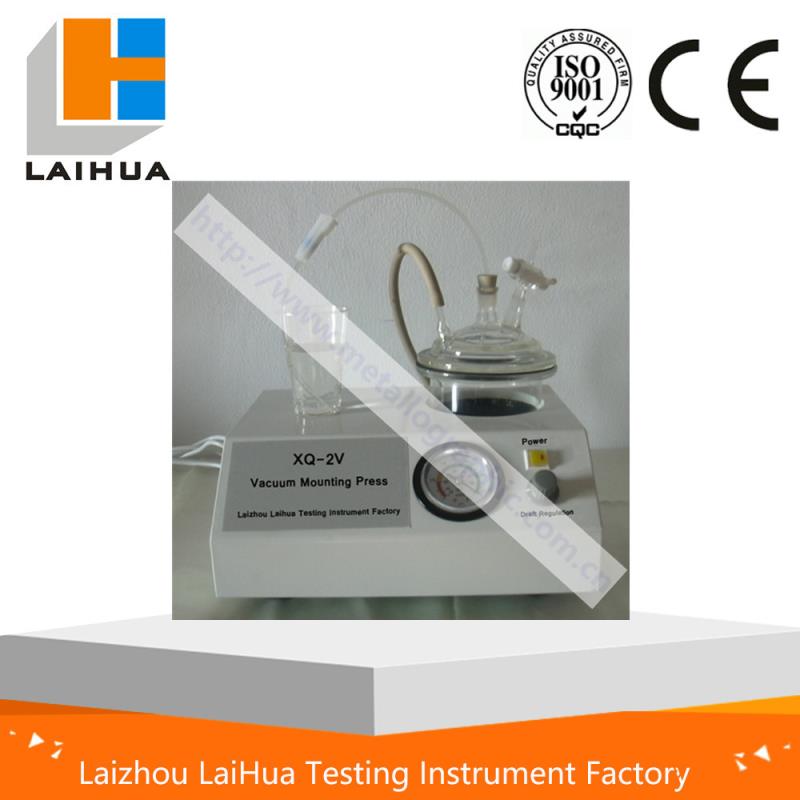

XQ-2V Vacuum Mounting Press

Cold mounting press, mount press, metallographic mounting press, metallographic inlay machine price and factory


Main Feature

Model XQ-2V Vacuum inlaying machine is a special sample set of equipment in the cold.

Through to the samples and set with resin vacuum, can remove samples and set the gases of the resin. Hole in the sample will be set with resin filling, samples and set between resin doesn't appear aperture.

At the same time 5-8 inlays 30 mm diameter of the samples



Technical Parameter:

Overall Dimension: 290 X 240 X 220mm

The vacuum chamber size: diameter 100mm Height 50mm, This size can be customized.

Vacuum: -0.08Mpa

Power supply: 220V, 50W
