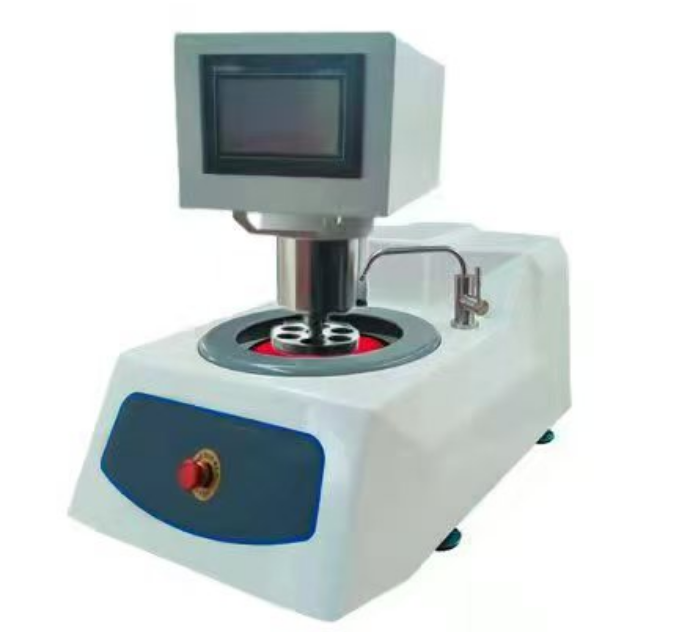

MP-1000 Automatic Grinding Polishing Machine

Double disc metallographic grinder polisher manufacturer, new technology grinding polishing machine

Application:

Applicable to rough grinding, fine grinding, rough polishing and finishing polishing for specimen preparing. Ideal option for the lab of factories, science and research institutions and universities.


Technical Parameter:

Diameter of working disc:250mm (203mm, 300mm can be customized)

Rotating Speed of working disc:50-1000rpm Step less speed changing or 200 r/min600 r/min800 r/min1000 r/min Four level constant speed (applicable to 203mm &250mm, 300mm need to be customized)

Rotating speed of polishing head: 5-100rpm

Loading range: 5-60N

Sample preparation time: 0-9999S

Sample diameter: φ30mm (φ22mmφ45mm can be customized)

Working Voltage:220V/50Hz

Dimension: 632×750×700mm

Motor:1.1KW

GW/NW: 52Kg/50Kg
